MODEL NO. :

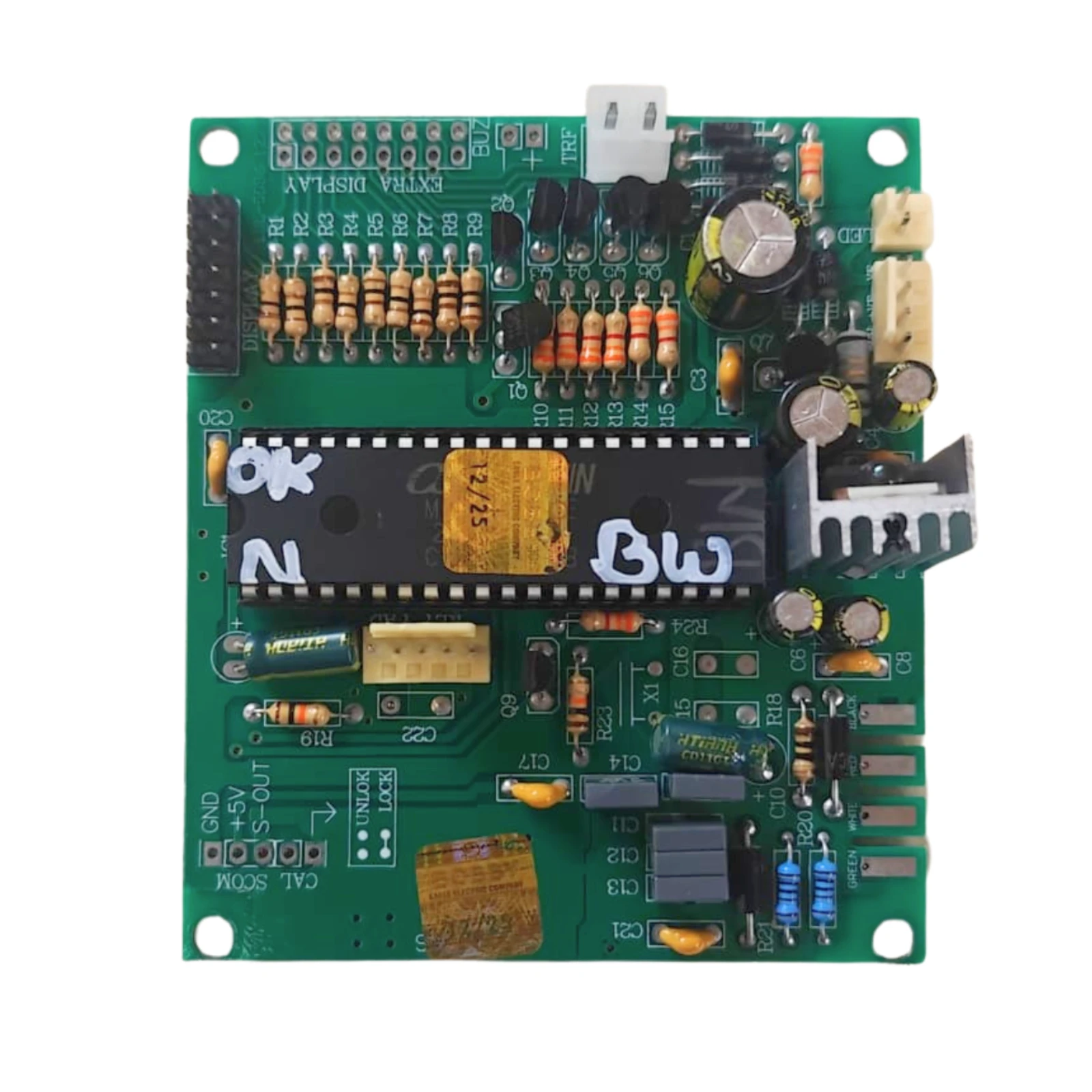

EGL Baby Weighing Card
Stabilisation Algorithm
WEIGHING SCALE
Standard weighing cards average across a settled reading; on a wriggling infant they never settle. The Baby Weighing card uses a firmware stabilisation algorithm that captures peaks across the motion envelope, discards drift, and delivers a clinical-grade reading from a moving subject.
Specifications
| MODEL | EGL Baby Weighing Card |
| FIRMWARE | 7777 Bobby (stabilisation-tuned) |
| ALGORITHM | Peak-capture + drift-rejection |
| PCB GRADE | 1.6 mm thickness · FR4 |
| BATTERY SUPPORT | 6 VOLTS |
| BATTERY BACKUP | Up to 50 hours |
| PAIRED CELLS | Aluminium single-point (≤30 kg standard) |
| PAIRED INDICATOR | EGL IND-01 (flat 0.8″ red) |
| OPTIONAL LOGGER | EagleOS Data Logger via BT card |
Specifications
| CAPACITY | 3 cap. with 3 step accuracy |
| DUMMY ZERO | YES |
| AIR LOCKING | YES |
| AUTO ZERO | YES |
| CAL LOCK | YES |
| BUZZER PORT | YES |
| SLEEP MODE | YES |
| BATTERY BACKUP | Up to 50 hours |
| BATTERY SUPPORT | 6 VOLTS |
| PCB GRADE | 1.6 mm thickness · FR4 |
| FIRMWARE | 7777 Bobby (per-application) |
| WARRANTY | 1 year · Made in India |
| STABILISATION | YES (peak across motion) |
| AUTO-LOCK | YES (hold settled reading) |
Features
Built into every Eagle Weigh card.
- ✓Stabilisation firmware — designed for moving subjects
- ✓Peak-capture across motion envelope, drift-rejected
- ✓Auto-lock when reading stabilises
- ✓Pairs with aluminium single-point cells (≤30 kg)
- ✓Optional integration with EagleOS Data Logger for EHR pipelines
- ✓Pairs with the Bluetooth card for wireless transfer to ward tablet
Used in
Where this card ships.
Paediatric clinicsHospitals · maternity wardsVeterinary clinicsPatient weighing
Compare with
Other cards in the family.
QUALITY PRODUCT
1 YEAR WARRANTY
TESTED & CALIBRATED
MOISTURE PROOF
Specify · Quote · Ship
Need the EGL Baby Weighing Card for your build?
Tell us the application, the capacity and the volume — we come back with a price-and-lead-time within one business day.
ModelEGL Baby Weighing Card
CategoryWeighing Scale PCB · Special Type
OriginMade in India · Samaypur, Delhi
Warranty1 year from invoice
