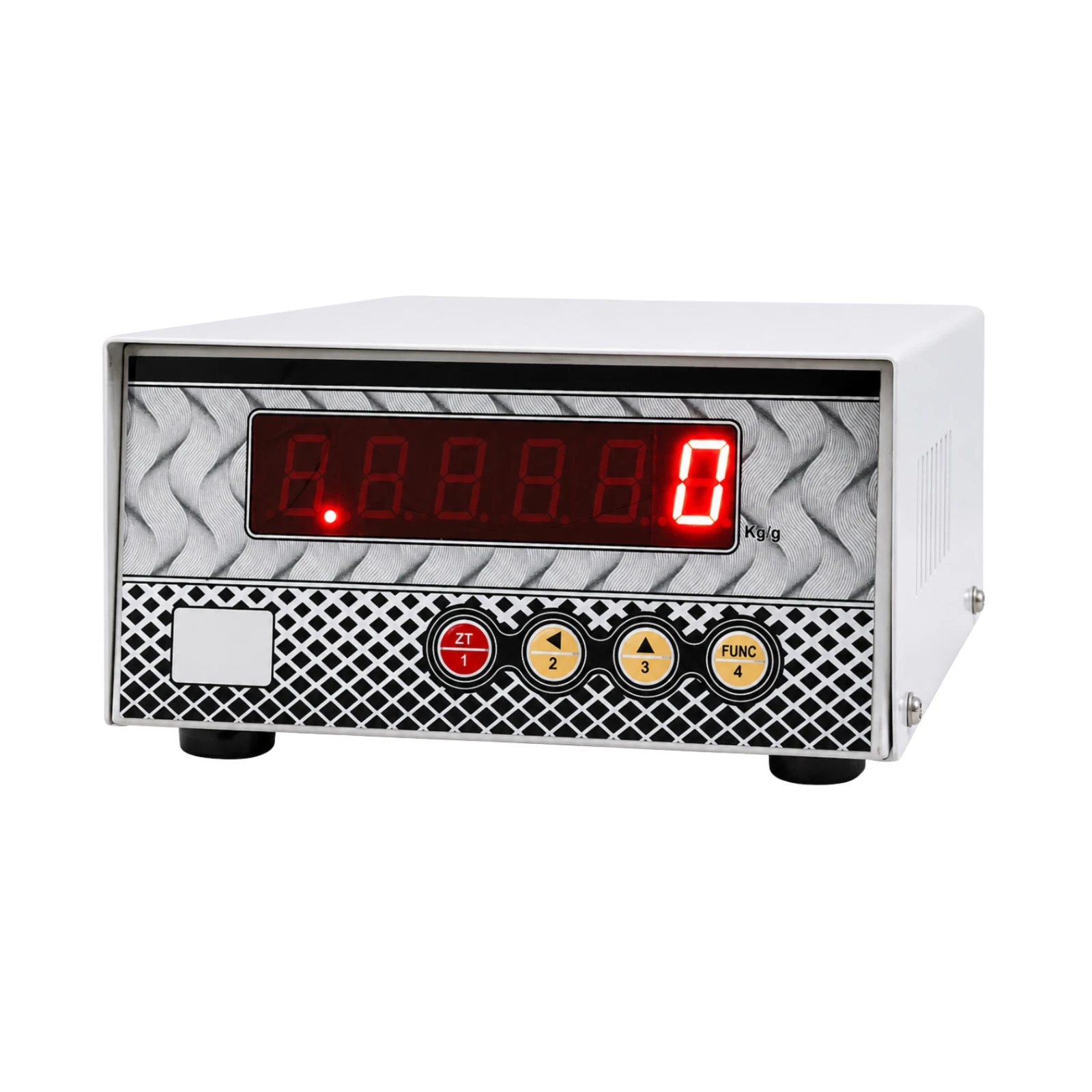

MODEL NO. :
EGL IND-01
(FLAT · 0.8″ RED)
Weighbridge Indicator
WEIGHBRIDGE
The EGL IND-01 is the flat-mount weighbridge indicator. Built on a Nuvoton processor with onboard SMPS, it accepts 140–280 V AC mains input, drives a 6-digit 0.8″ high-bright red segment display, supports up to 8 load cells (analogue or digital), and ships with isolated RS-232 plus Bluetooth + Android data transfer. 2,400 readings per second.
Specifications
| MODEL | EGL IND-01 |
| FORM FACTOR | Flat (clean cabinet fit) |
| DISPLAY | 0.8″ High-bright red · 6-digit |
| PROCESSOR | Nuvoton |
| POWER | 140 – 280 V AC · onboard SMPS |
| SOFTWARE | 7777 Bobby (in-house) |
| PROTECTION | ESD-protected |
| LOAD-CELL SUPPORT | Up to 8 LC · analogue + digital |
| READING RATE | 2,400 readings / sec |
| RS-232 INTERFACE | YES (optocoupler-isolated) |
| DATA TRANSFER | Bluetooth + Android app · USB |
| ENCLOSURE | Powder-coated metal · cabin-grade |
Specifications
| CHECK-WEIGHER MODE | YES (pass / fail with peak-hold) |
| PEAK HOLD | YES |
| MANUAL TARE | YES |
| AUTO ZERO | YES |
| AIR LOCKING | YES |
| CAL LOCK | YES (password-protected) |
| SLEEP MODE | YES |
| SET-POINT | YES (3 or 4 step) |
| L / KG SWITCHING | YES |
| PIECE COUNTING | YES |
| WARRANTY | 1 year · Made in India |
Features
Built into every Eagle Weigh card.
- ✓0.8″ high-bright red segment display — clean fit for tight cabinets
- ✓Up to 8 load cells (analogue or digital)
- ✓2,400 readings per second — repeatable on fast-cycling weighbridges
- ✓Bluetooth + Android app + USB data transfer
- ✓Optocoupler-isolated RS-232
- ✓Check-weigher, peak-hold, manual tare, set-point modes
- ✓Designed for 140–280 V AC — survives Indian mains fluctuation
- ✓1-year warranty
Used in
Where this card ships.
WeighbridgesIndustrial platform scalesBench scalesHopper / bag weighers
QUALITY PRODUCT
1 YEAR WARRANTY
TESTED & CALIBRATED
MOISTURE PROOF
Specify · Quote · Ship
Need the EGL IND-01 for your build?
Tell us the application, the capacity and the volume — we come back with a price-and-lead-time within one business day.
ModelEGL IND-01
CategoryWeighbridge Indicator
OriginMade in India · Samaypur, Delhi
Warranty1 year from invoice
