MODEL NO. :

EGL S0 SMD

(DOUBLE PCB) 6V

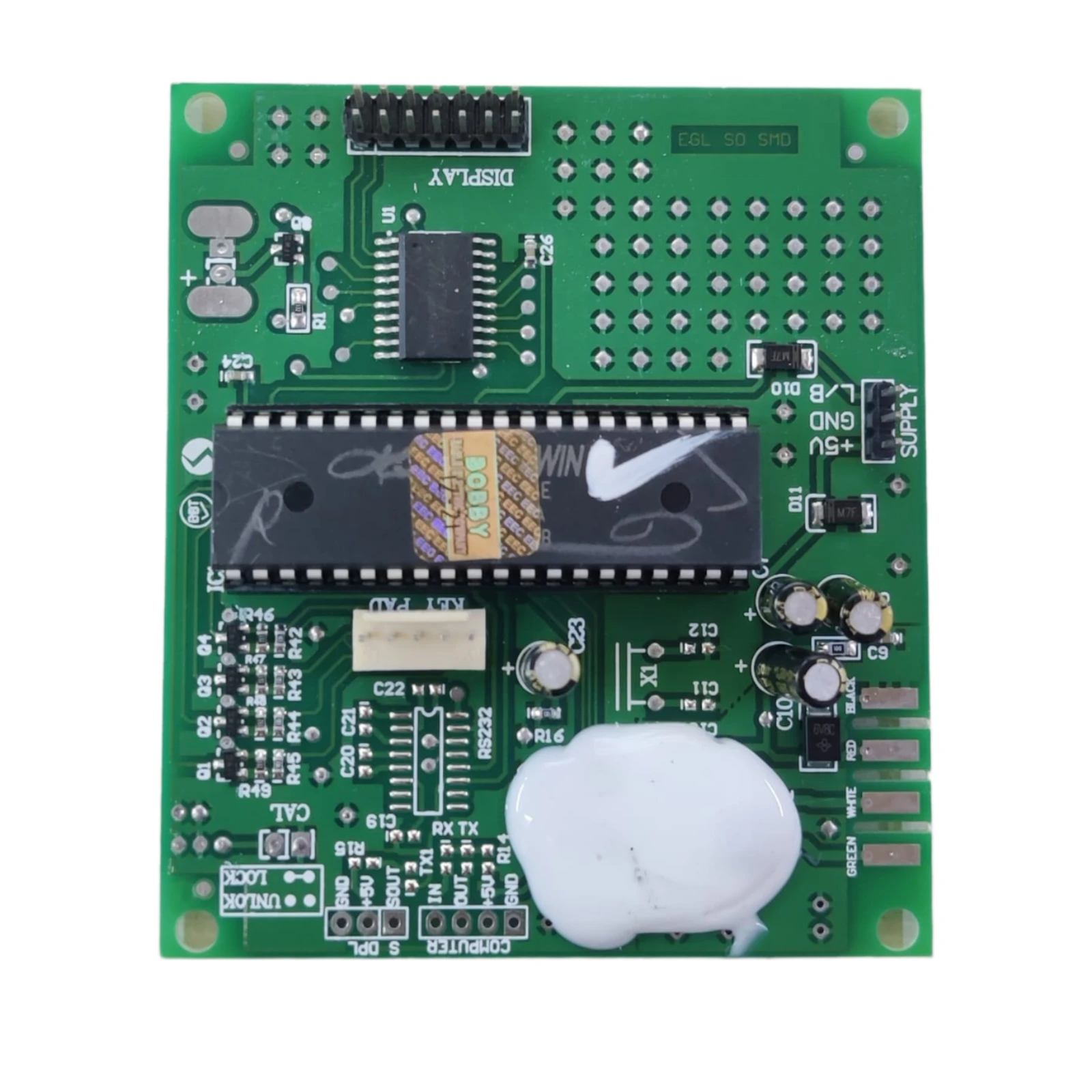

Eagle Weigh EGL S0 SMD weighing-scale PCB
WEIGHING SCALE

The premium board in the Eagle Weigh range. Built around the 24-bit ADS1130 from Texas Instruments USA, the S0 SMD ships in a double-PCB configuration with dual-LED segment control. Up to 90 hours of battery backup, RS232 isolated output, and three-wire display support — the default choice when accuracy matters and the install is permanent.

Specifications
MODELS0-SMD
ADCADS1130 Texas Instruments U.S.A.
SOFTWARE7777 Bobby
PCB SIZE76 × 86.40 mm
PCB GRADE1.6 mm thickness · FR4
HOLE MOUNTING SIZE70 × 80 mm
PROTECTIONReverse battery
MODE FUNCTIONSHold / piece-counting / kg / litre
DISPLAY COMPATIBLE0.56″, 0.8″, 1″, 2″, 4″ inches
LEDDual
RS-232 INTERFACEYES
Specifications
CAPACITY3 cap. with 3 step accuracy
DUMMY ZEROYES
AIR LOCKINGYES
AUTO ZEROYES
CAL LOCKYES
BUZZER PORTYES
SLEEP MODEYES
BATTERY VOLT IND.NO
BATTERY BACKUPUp to 90 hours
BATTERY SUPPORT6 VOLTS
THREE WIRE DISPLAYYES
Features

Built into every Eagle Weigh card.

  • ✓Premium 24-bit ADS1130 ADC (Texas Instruments USA)
  • ✓Double-PCB configuration with dual-LED segment control
  • ✓Up to 90 hours battery backup at 6 V
  • ✓Isolated RS-232 output for terminal/PLC integration
  • ✓Compatible across 0.56″ to 4″ segment displays
  • ✓1.6 mm FR4 board, in-house SMT assembly, conformal-coated
  • ✓Cal-lock, sleep mode, auto/dummy zero, air-locking
  • ✓Three-wire display support for remote-mount panels
Used in

Where this card ships.

Weighbridge indicatorsIndustrial platform scalesPrecision bench scalesTerminal back-ends
